Hỗ trợ Intel Core thế hệ 12/13/14 LGA1700.
RAM DDR5 tối đa 96GB, tốc độ đến 8000MHz(OC).
Đồ họa: HDMI 4K@30Hz, DisplayPort 4K@60Hz.
Khe cắm: PCIe 5.0 x16 và PCIe 4.0 x1.
Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s.
Kết nối: Wi-Fi 6, Bluetooth 5.3, LAN 1Gb Ethernet.
USB: 6 sau (5Gbps, 2.0), 4 trước (5Gbps, 2.0).
Liên hệ với nhân viên kinh doanh
Khám phá sức mạnh của công nghệ tiên tiến với

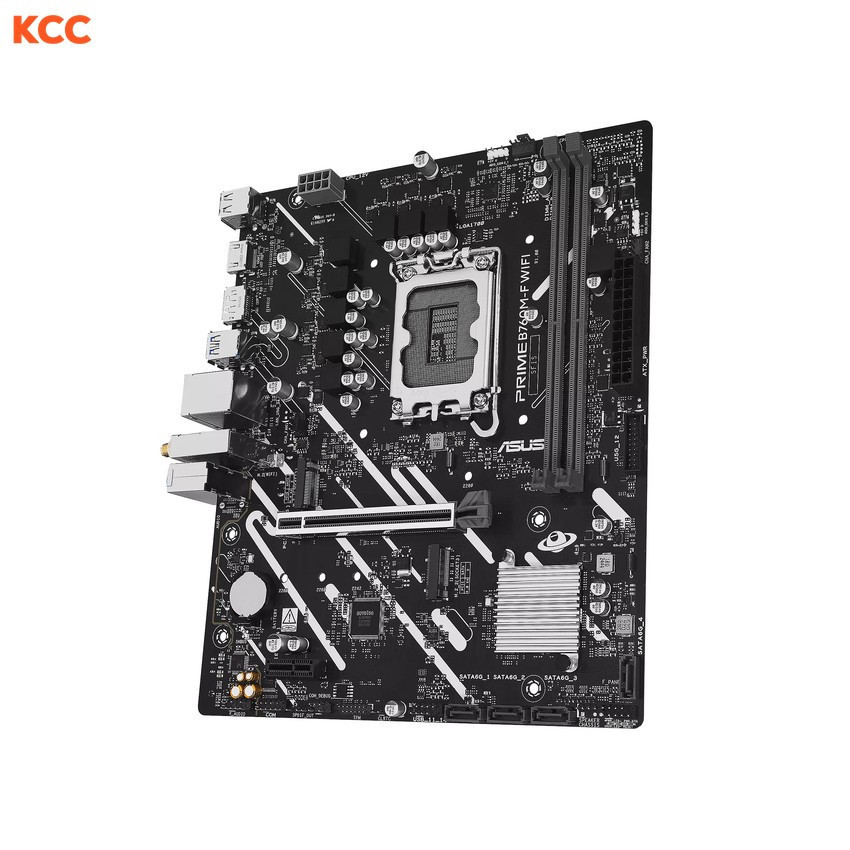

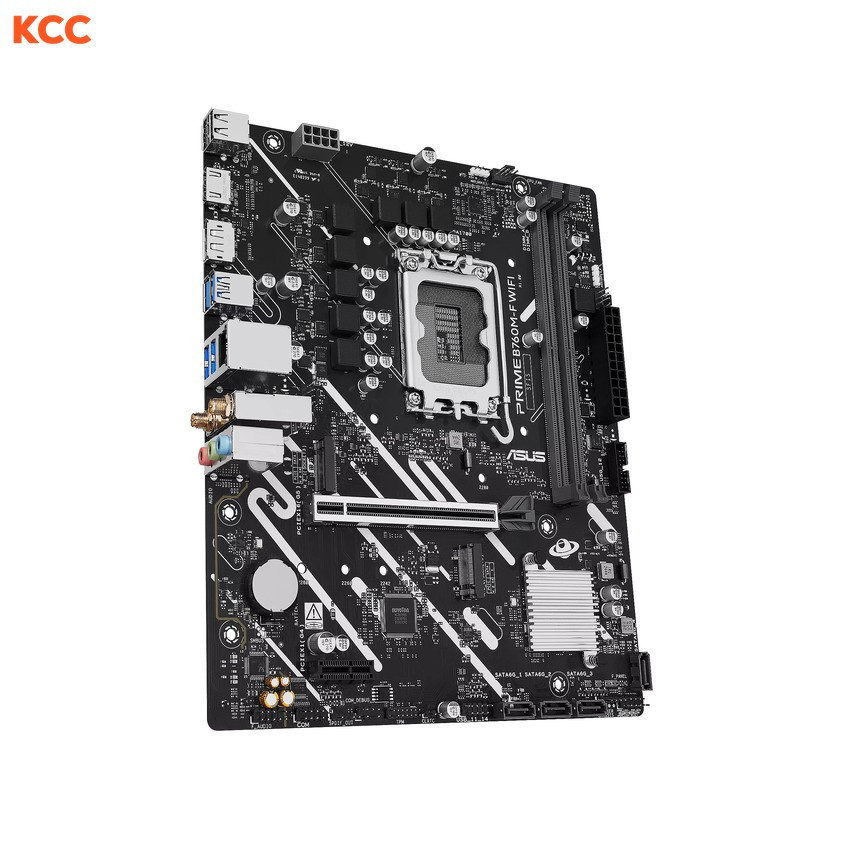

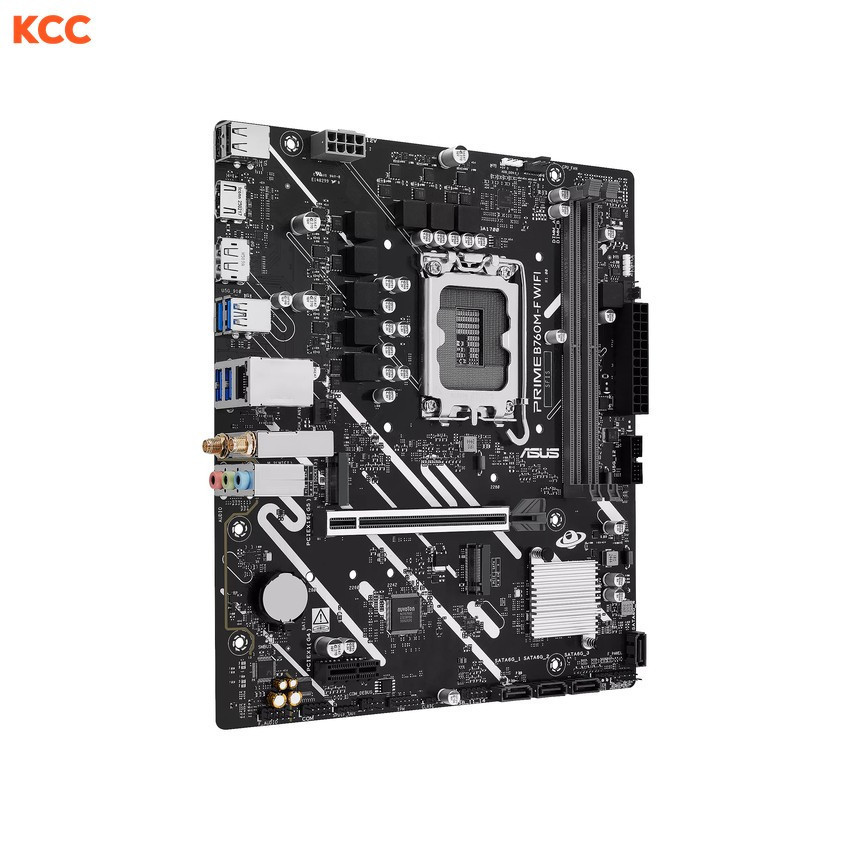

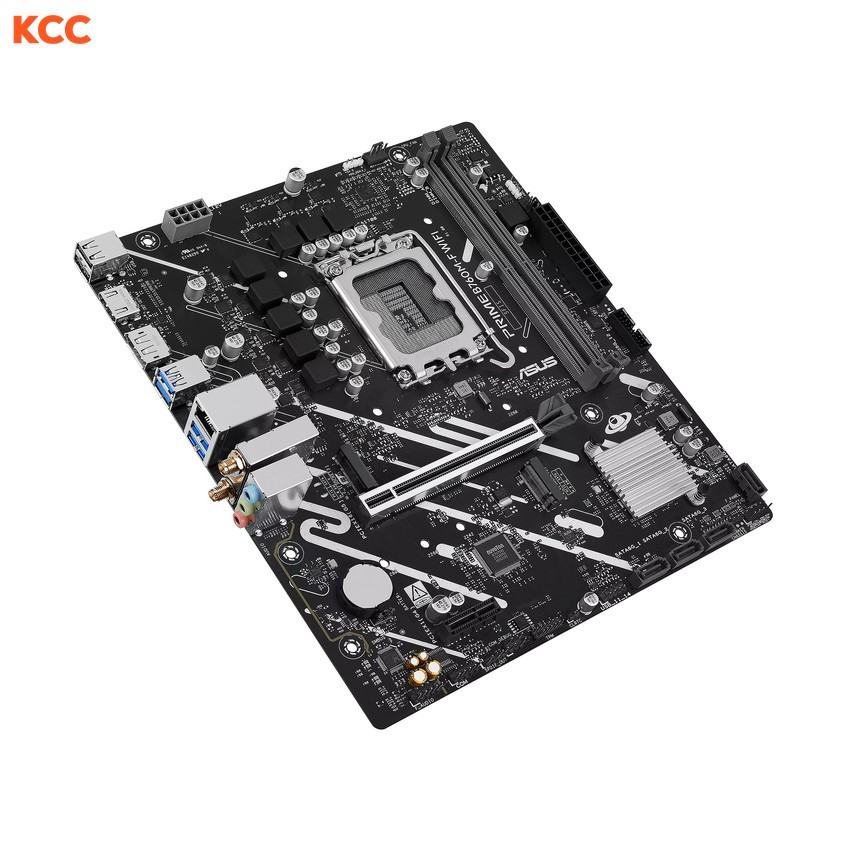

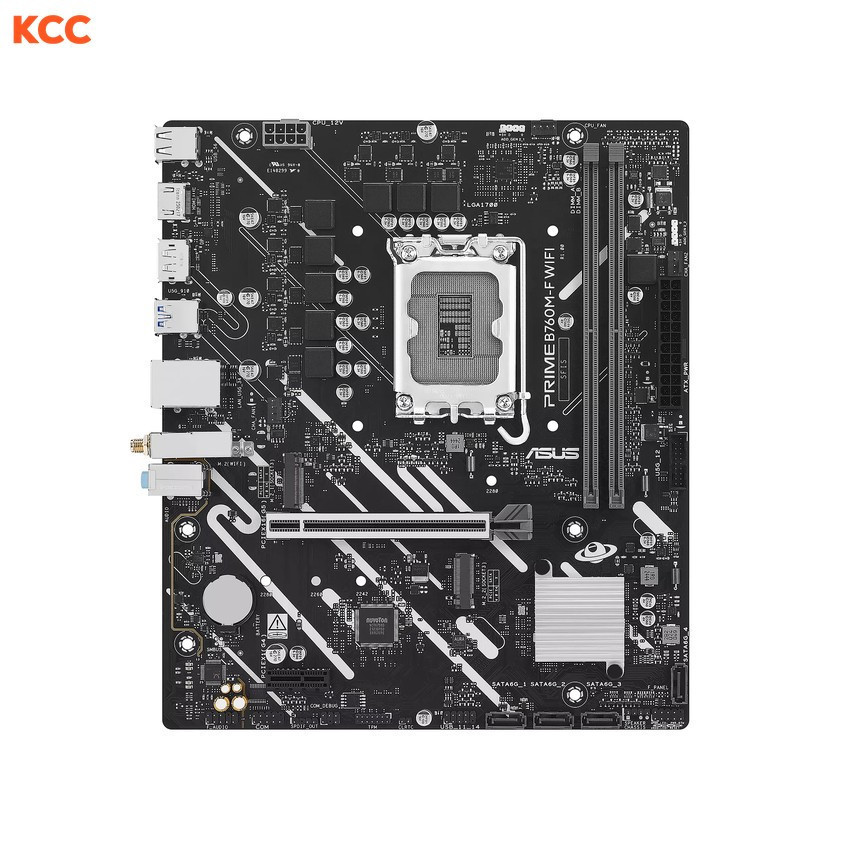

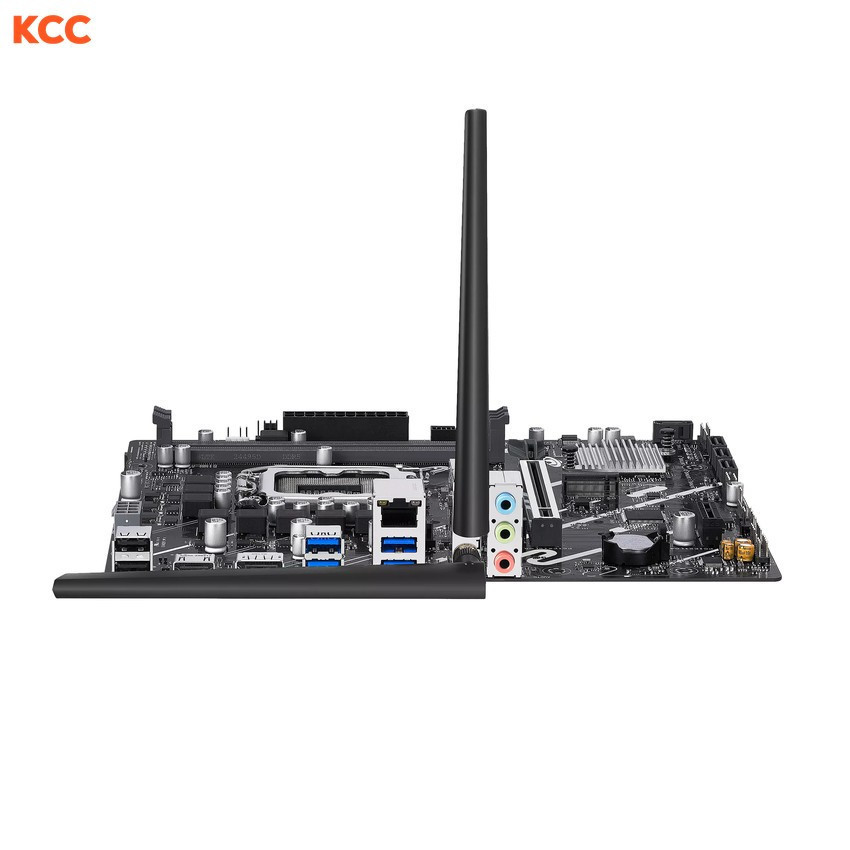

Mainboard Asus PRIME B760M-F WIFI DDR5
- giải pháp bo mạch chủ micro-ATX đỉnh cao dành cho những người đam mê công nghệ. Được trang bị chipset Intel B760 mới nhất và hỗ trợ bộ nhớ DDR5 tốc độ cao, sản phẩm này mang đến hiệu suất vượt trội cho mọi nhu cầu từ gaming đến công việc chuyên nghiệp.
Mainboard Asus PRIME B760M-F WIFI DDR5 được xây dựng trên nền tảng chipset Intel B760 tiên tiến, hỗ trợ đầy đủ các bộ vi xử lý Intel Core thế hệ 12, 13 và 14 mới nhất với socket LGA1700. Khả năng tương thích rộng rãi này đảm bảo bạn có thể nâng cấp CPU dễ dàng mà không cần thay đổi bo mạch chủ.
Công nghệ
Intel Turbo Boost Technology 2.0
và
Intel Turbo Boost Max Technology 3.0
được tích hợp sẵn, tự động tăng tốc độ xử lý khi cần thiết, mang lại hiệu suất tối ưu cho các tác vụ nặng như gaming, render video hay thiết kế đồ họa.
Điểm nổi bật của bo mạch chủ này chính là khả năng hỗ trợ
bộ nhớ DDR5
với tốc độ lên đến
8000MHz (OC)
. Với 2 khe DIMM hỗ trợ tối đa 96GB RAM, bạn có thể xây dựng hệ thống với dung lượng bộ nhớ khổng lồ cho các ứng dụng đòi hỏi cao.
Kiến trúc
dual-channel memory
kết hợp với hỗ trợ Intel XMP giúp tối ưu hóa băng thông bộ nhớ, giảm độ trễ và nâng cao hiệu suất tổng thể của hệ thống. Điều này đặc biệt quan trọng cho gaming 4K và các tác vụ đa nhiệm phức tạp.
Với
2 khe M.2 PCIe 4.0 x4
và
4 cổng SATA 6Gb/s
, bo mạch chủ này cung cấp khả năng lưu trữ linh hoạt và tốc độ cao. Các khe M.2 hỗ trợ SSD NVMe thế hệ mới với tốc độ đọc/ghi vượt trội, giúp rút ngắn thời gian khởi động hệ thống và load game.
Hỗ trợ
Intel Rapid Storage Technology
với các chế độ RAID 0, 1, 5, 10 cho phép tối ưu hóa hiệu suất hoặc bảo vệ dữ liệu theo nhu cầu sử dụng.
KCCSHOP là nhà cung cấp các sản phẩm Màn hình máy tính cao cấp, PC Gaming, CPU-Bộ vi xử lý, Laptop Gaming … chính hãng cùng với giá cả hợp lý, chất lượng hàng đầu tại Hà Nội và TP.HCM. Với phương châm luôn đặt sự hài lòng của khách hàng lên hàng đầu, chúng tôi mong muốn đem tới cho khách hàng những trải nghiệm mua sắm tuyệt vời nhất. Ngoài sản phẩm Mainboard Asus PRIME B760M-F WIFI DDR5 thì KCCSHOP còn có rất nhiều sản phẩm MAIN khác với chất lượng cao, giá thành tốt. Hãy liên hệ ngay với chúng tôi qua Hotline 0912.074.444 (HN), 0966.666.308 (HCM) hoặc truy cập https://kccshop.vn/ để được tư vấn và mua những sản phẩm ưng ý nhất.
0/5
0 đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạn| Model | PRIME B760M-F WIFI |
|---|---|
| CPU |
Intel
®
Socket LGA1700 for Intel
®
Core™ 14
th
& 13
th
Gen Processors, Intel
®
Core™ 12
th
Gen, Pentium
®
Gold and Celeron
®
Processors
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B760 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel ® Extreme Memory Profile (XMP) memory module Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics |
1 x DisplayPort
1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@30Hz as specified in HDMI 1.4. |
| Expansion Slots |
Intel
®
Core
TM
Processors (14
th
& 13
th
& 12
th
Gen)
1 x PCIe 5.0 x16 slot Intel ® B760 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet |
1 x Realtek 1Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.3 The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB |
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

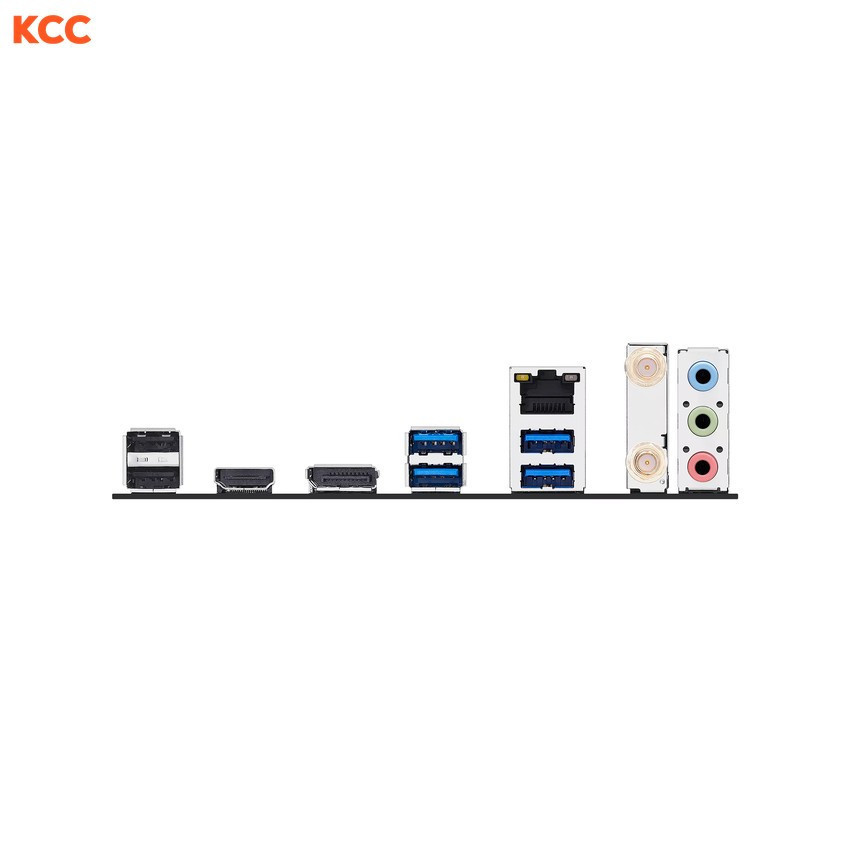

| Back Panel I/O Ports |
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors |
Fan and Cooling Related
1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header |
| Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable RGB Gen 2 headers |
| Software Features |
ASUS Exclusive Software
Armoury Crate - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS DriverHub -ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 2 x |
