Socket LGA1700 cho CPU Intel Core thế hệ 12-14.
Chipset Intel B760 hỗ trợ ép xung bộ nhớ.
4 khe DIMM, tối đa 256GB DDR5 7200+(OC).
1 cổng DisplayPort và 1 cổng HDMI 4K@60Hz.
1 khe PCIe 5.0 x16 và 2 khe PCIe 4.0 x16.
2 khe M.2 PCIe 4.0 x4 và 4 cổng SATA 6Gb/s.
6 USB sau, 10 USB trước, LAN 2.5Gb Ethernet.
Liên hệ với nhân viên kinh doanh
Khám phá sức mạnh của công nghệ tiên tiến với

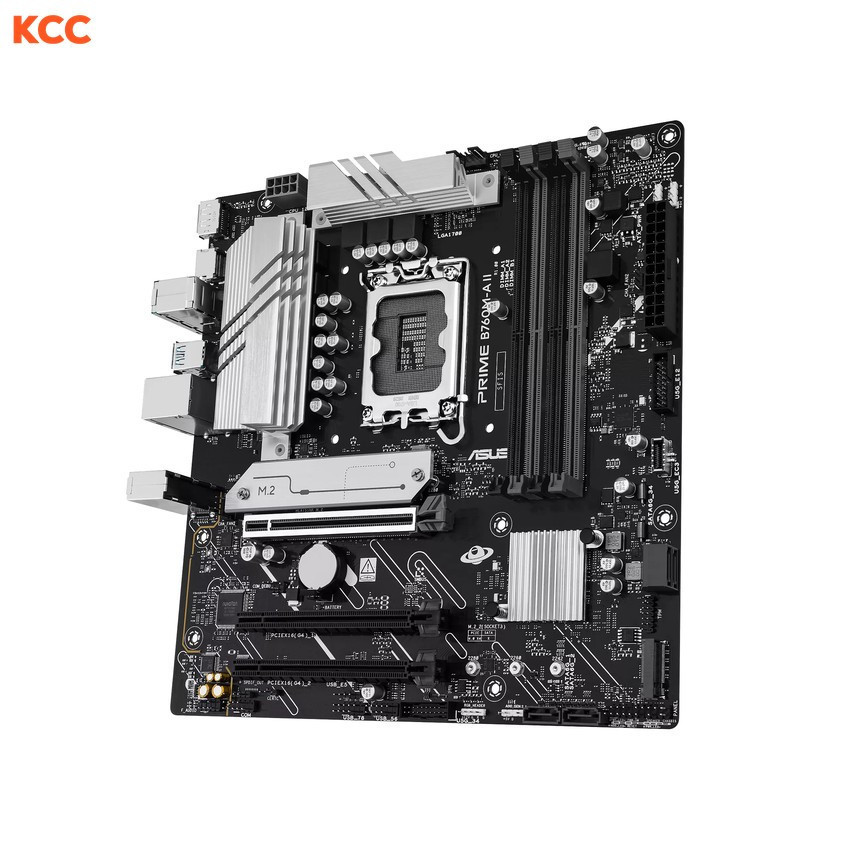

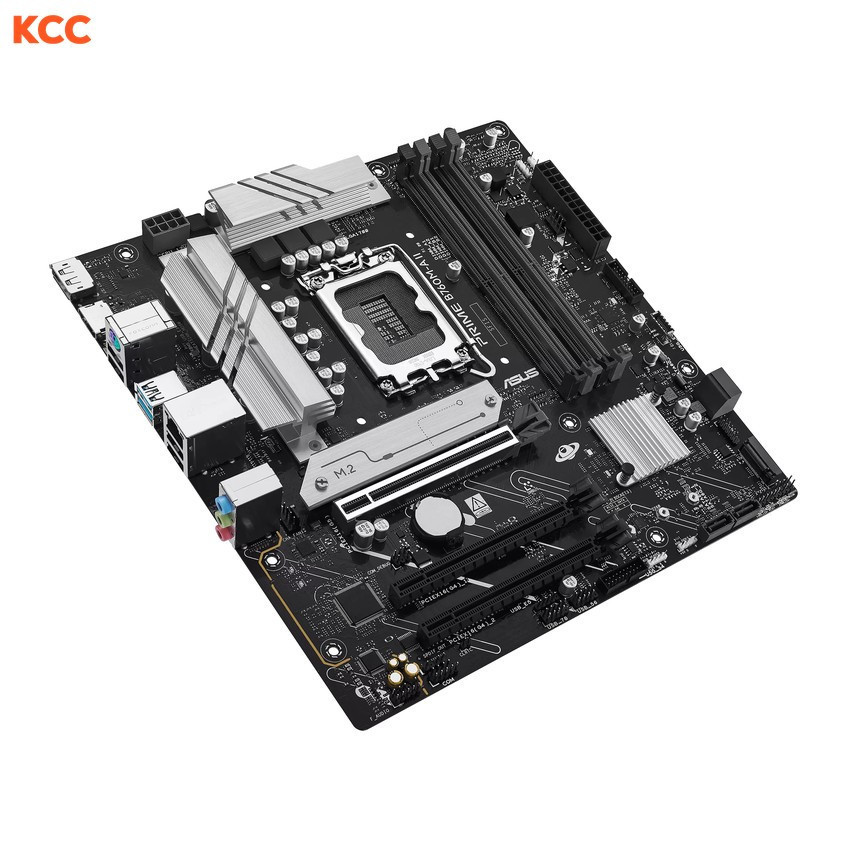

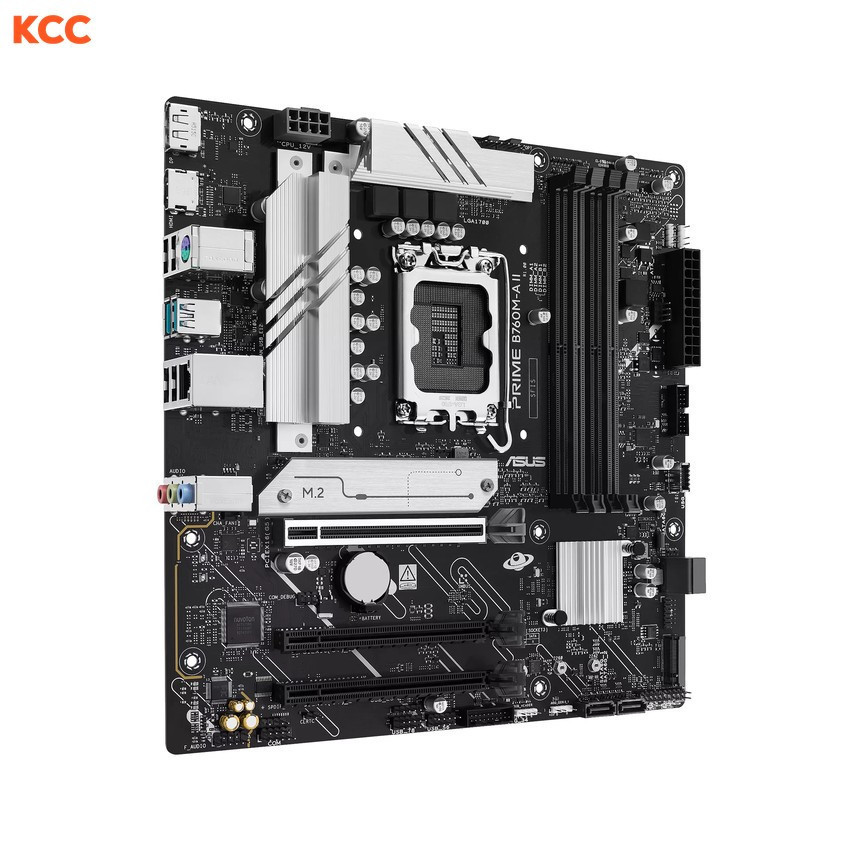

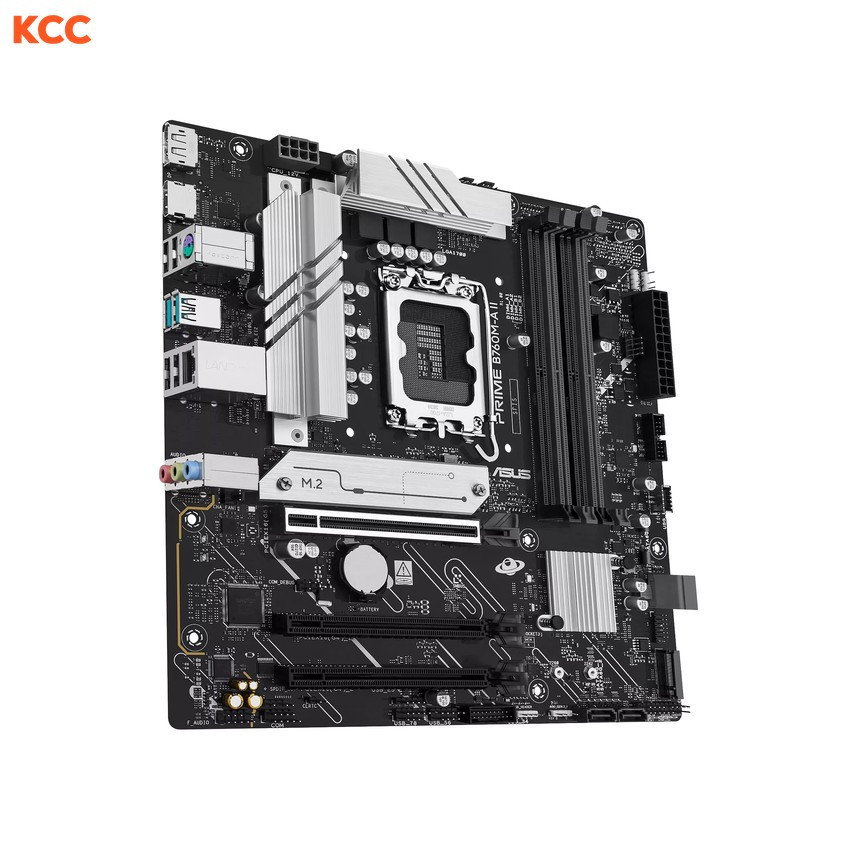

Mainboard Asus PRIME B760M-A II DDR5
- bo mạch chủ micro-ATX được thiết kế dành cho những người dùng đòi hỏi hiệu suất cao và độ tin cậy tuyệt đối. Với chipset Intel B760 mới nhất và hỗ trợ DDR5, sản phẩm này mang đến trải nghiệm computing vượt trội cho mọi nhu cầu sử dụng.
Mainboard Asus PRIME B760M-A II DDR5 được trang bị socket LGA1700, hỗ trợ đầy đủ các bộ vi xử lý Intel Core thế hệ 12, 13 và 14 mới nhất. Chipset Intel B760 không chỉ đảm bảo khả năng tương thích hoàn hảo mà còn tối ưu hóa hiệu suất với
Intel Turbo Boost Technology 2.0
và
Intel Turbo Boost Max Technology 3.0
.
Hệ thống bộ nhớ DDR5 với 4 khe DIMM hỗ trợ tối đa
256GB RAM
và tốc độ lên đến
DDR5-7200+ (OC)
mang lại băng thông khủng cho các tác vụ đa nhiệm phức tạp. Kiến trúc kênh đôi cùng với
Intel Extreme Memory Profile (XMP)
đảm bảo hiệu suất bộ nhớ được tối ưu hóa tự động.
Realtek 7.1 Surround Sound
với codec HD Audio hỗ trợ phát lại
24-Bit/192 kHz
mang đến trải nghiệm âm thanh sống động. Các tính năng cao cấp như
Audio Shielding
, tụ điện âm thanh cao cấp và lớp PCB âm thanh chuyên dụng đảm bảo chất lượng âm thanh trong trẻo, không nhiễu.
KCCSHOP là nhà cung cấp các sản phẩm Màn hình máy tính cao cấp, PC Gaming, CPU-Bộ vi xử lý, Laptop Gaming … chính hãng cùng với giá cả hợp lý, chất lượng hàng đầu tại Hà Nội và TP.HCM. Với phương châm luôn đặt sự hài lòng của khách hàng lên hàng đầu, chúng tôi mong muốn đem tới cho khách hàng những trải nghiệm mua sắm tuyệt vời nhất. Ngoài sản phẩm Mainboard Asus PRIME B760M-A II DDR5 thì KCCSHOP còn có rất nhiều sản phẩm MAIN khác với chất lượng cao, giá thành tốt. Hãy liên hệ ngay với chúng tôi qua Hotline 0912.074.444 (HN), 0966.666.308 (HCM) hoặc truy cập https://kccshop.vn/ để được tư vấn và mua những sản phẩm ưng ý nhất.
0/5
0 đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạn| Feature | PRIME B760M-A II |
|---|---|
| Model | PRIME B760M-A II |
| CPU |
Intel
®
Socket LGA1700 for Intel
®
Core™ 14
th
& 13
th
Gen Processors, Intel
®
Core™ 12
th
Gen, Pentium
®
Gold and Celeron
®
Processors
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B760 Chipset |
| Memory |
4 x DIMM slots, max. 256GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel ® Extreme Memory Profile (XMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics |
1 x DisplayPort
1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI™ 2.1. |
| Expansion Slots |
Intel
®
Core™ Processors (14
th
& 13
th
& 12
th
Gen)
1 x PCIe 5.0 x16 slot Intel ® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard |
| USB |
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 1 x USB 5Gbps connector (supports USB Type-C ® ) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1x USB 2.0 header supports 1 additional USB 2.0 port USB Type-C ® power delivery output: max. 5V/3A U5G_EC3 and USB_E5 can only be enabled/disabled simultaneously. |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

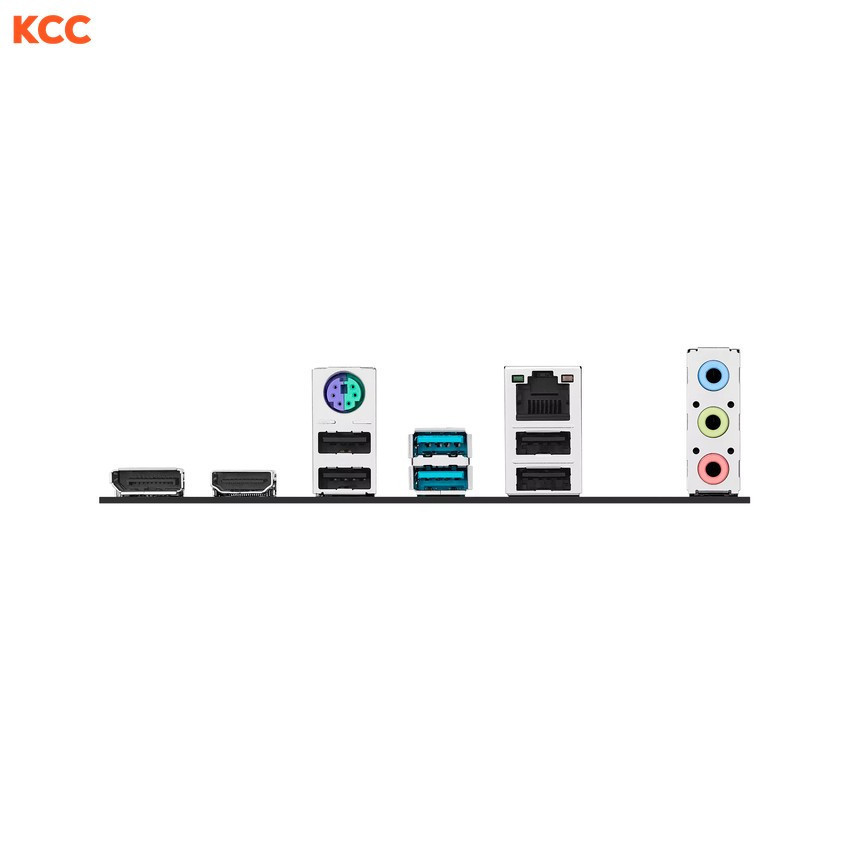

| Back Panel I/O Ports |
2 x USB 10Gbps ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 1 x USB 5Gbps connector (supports USB Type-C ® ) 2x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM -Q-LED Core -Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features |
ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ |
