Hỗ trợ CPU Intel Core thế hệ 12/13/14.
RAM DDR4 tối đa 64GB, tốc độ đến 5333MHz(OC).
Khe PCIe 5.0 x16 cho card đồ họa.
Hai khe M.2 PCIe 4.0 x4 cho SSD.
Kết nối Wi-Fi 6 và Bluetooth 5.3.
Realtek 2.5Gb Ethernet cho mạng nhanh.
Âm thanh Realtek 7.1 Surround Sound CODEC.
Liên hệ với nhân viên kinh doanh

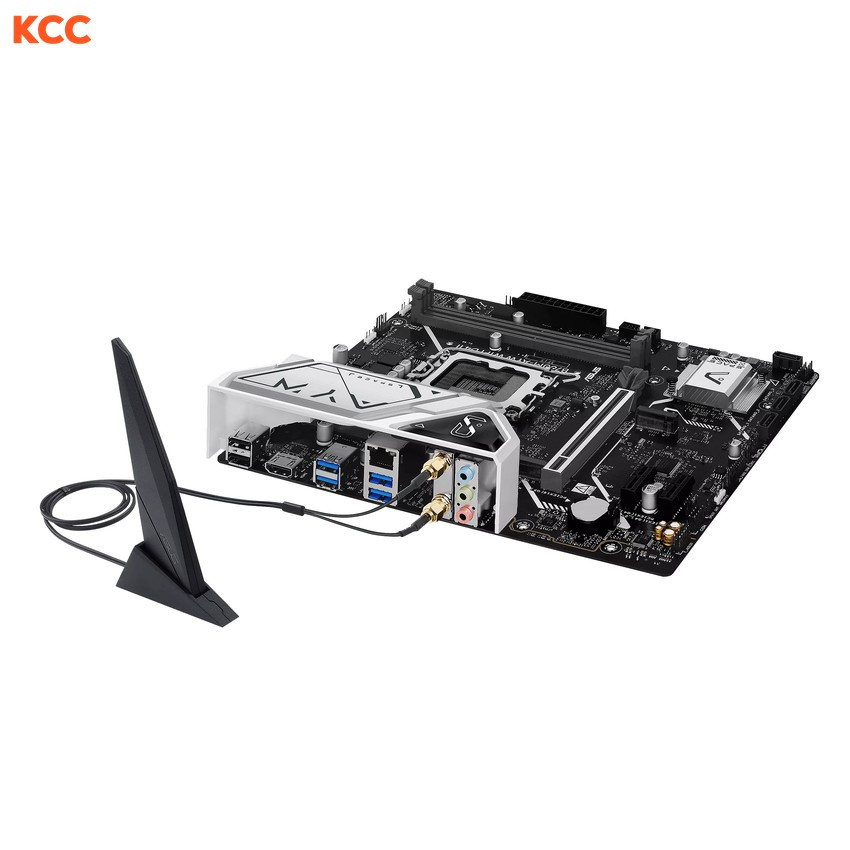

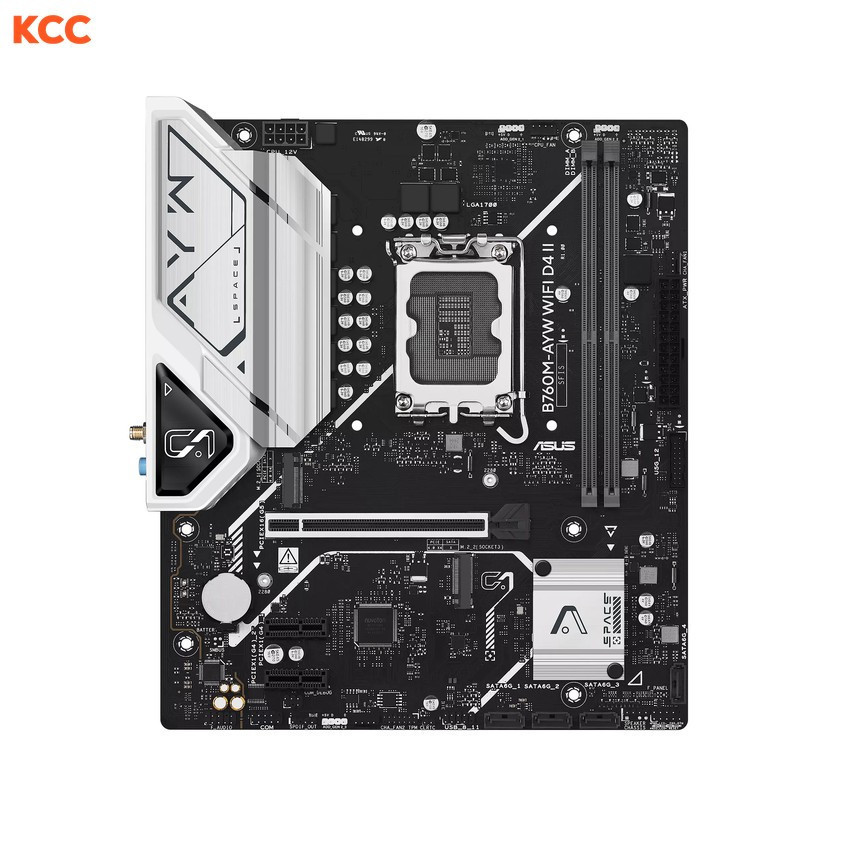

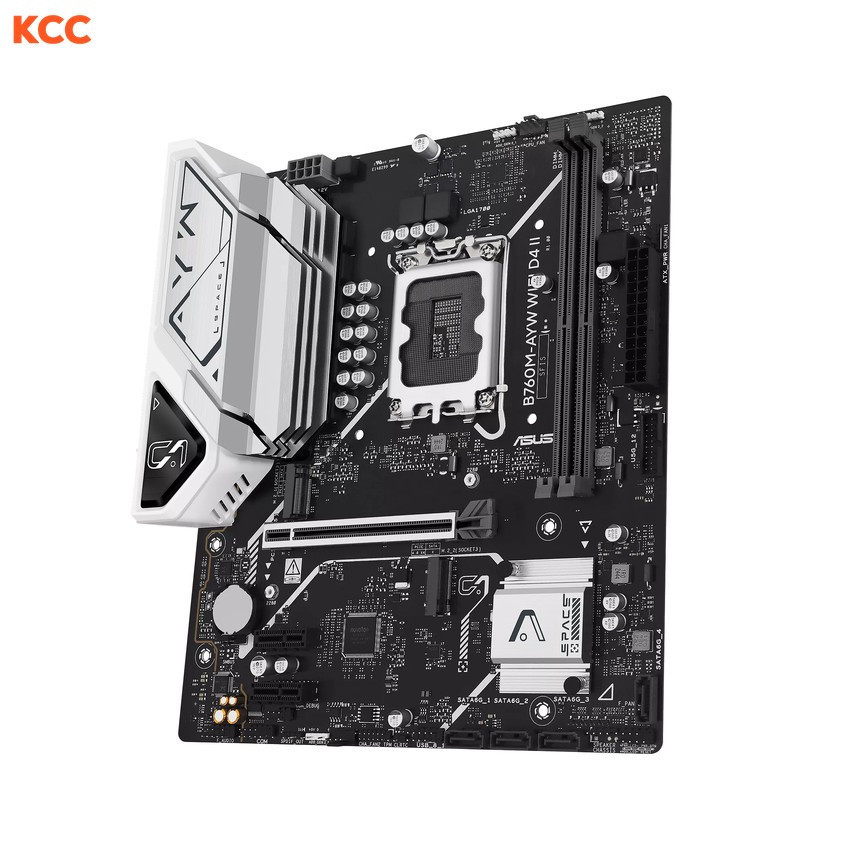

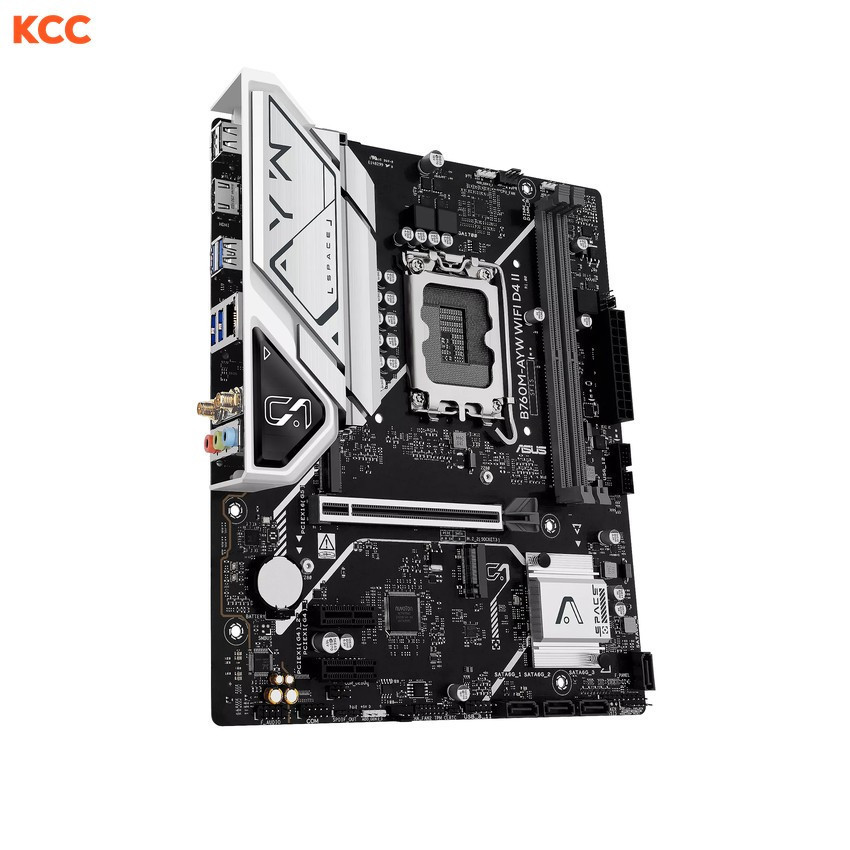

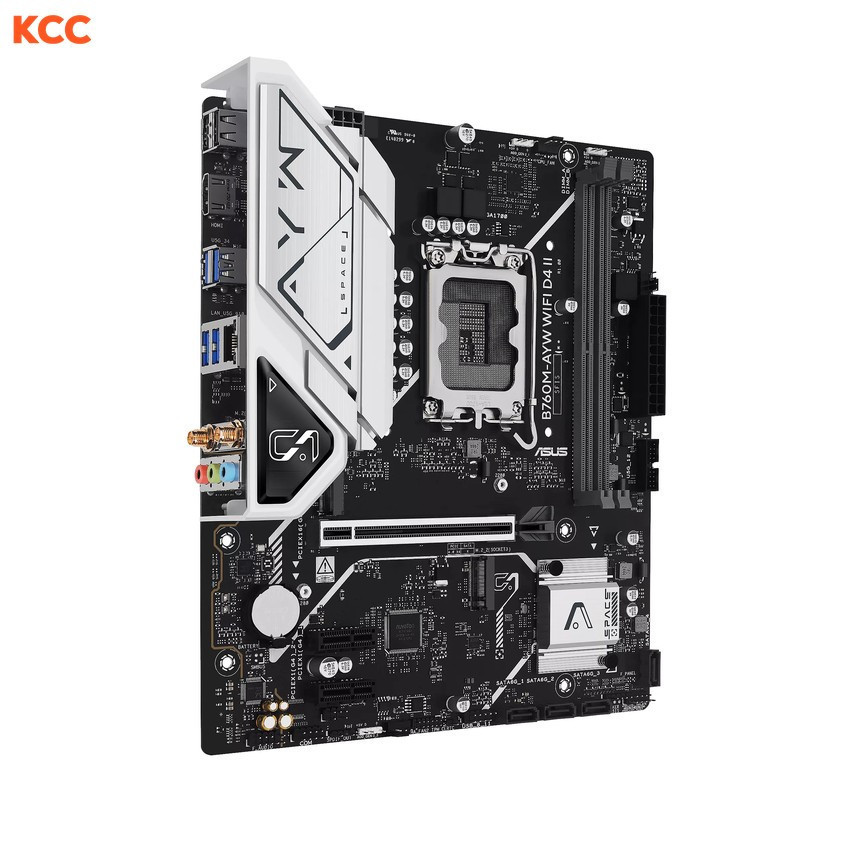

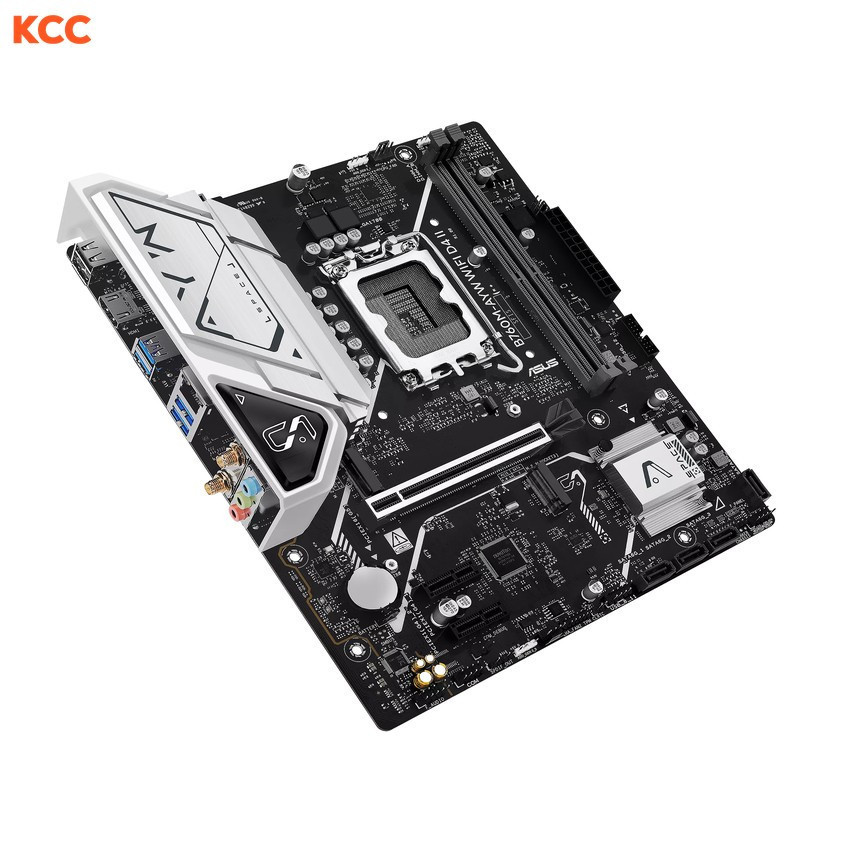

Khám phá sức mạnh vượt trội với Mainboard Asus B760M-AYW WIFI D4 II DDR4 - bo mạch chủ micro-ATX cao cấp được thiết kế dành cho game thủ và người dùng chuyên nghiệp. Với chipset Intel B760 tiên tiến và hỗ trợ CPU Intel thế hệ mới nhất, sản phẩm này mang đến hiệu suất đỉnh cao cùng tính năng kết nối không dây Wi-Fi 6 hiện đại.
Mainboard Asus B760M-AYW WIFI D4 II DDR4 hỗ trợ đầy đủ các dòng CPU Intel Socket LGA1700, bao gồm Core thế hệ 14, 13, 12 cùng Pentium Gold và Celeron. Chipset Intel B760 tích hợp công nghệ Intel Turbo Boost 2.0 và Turbo Boost Max 3.0, giúp tối ưu hóa hiệu suất xử lý trong mọi tác vụ từ gaming đến công việc chuyên nghiệp.
Với 2 khe DIMM DDR4 hỗ trợ tối đa 64GB RAM , mainboard cho phép nâng cấp bộ nhớ linh hoạt với tốc độ lên đến DDR4-5333 (OC) . Kiến trúc bộ nhớ kênh đôi và hỗ trợ Intel XMP đảm bảo hiệu suất tối ưu cho gaming và ứng dụng đa nhiệm.
Bo mạch chủ trang bị 1 khe PCIe 5.0 x16 cho card đồ họa cao cấp và 2 khe PCIe 4.0 x1 cho các thiết bị mở rộng. Hệ thống lưu trữ bao gồm:
Tích hợp Wi-Fi 6 (802.11ax) và Bluetooth 5.3 mang đến trải nghiệm kết nối không dây ổn định với tốc độ cao. Cổng Ethernet 2.5Gb với công nghệ ASUS LANGuard bảo vệ khỏi nhiễu điện và đảm bảo kết nối mạng ổn định.
Codec âm thanh Realtek 7.1 Surround với công nghệ Audio Shielding, tụ điện âm thanh cao cấp và lớp PCB âm thanh chuyên dụng mang đến chất lượng âm thanh sống động, phù hợp cho gaming và giải trí.
Cam kết cung cấp sản phẩm chính hãng ASUS với đầy đủ tem bảo hành và phụ kiện đi kèm.
Chính sách giá tốt nhất thị trường với nhiều chương trình khuyến mãi hấp dẫn.
Ship siêu tốc, đóng gói cẩn thận đảm bảo sản phẩm đến tay khách hàng an toàn.
Kỹ thuật viên giàu kinh nghiệm hỗ trợ 24 x 7, sẵn sàng giải đáp mọi thắc mắc.
Có, bo mạch chủ hỗ trợ đầy đủ CPU Intel thế hệ 14, 13, 12 với socket LGA1700, bao gồm cả các dòng Core, Pentium Gold và Celeron.
Wi-Fi 6 mang đến tốc độ nhanh hơn, độ trễ thấp hơn và khả năng kết nối nhiều thiết bị đồng thời tốt hơn, phù hợp cho gaming online và streaming.
Mainboard có 2 khe M.2 hỗ trợ PCIe 4.0 x4, cho phép lắp 2 ổ SSD NVMe tốc độ cao đồng thời.
Khe PCIe 5.0 x16 tương thích với tất cả card đồ họa hiện tại và tương lai, từ entry-level đến high-end như RTX 4090, RTX 4080.
Có, codec Realtek 7.1 Surround Sound tích hợp hỗ trợ âm thanh vòm 7.1 kênh với chất lượng cao, phù hợp cho gaming và giải trí.
KCCSHOP là nhà cung cấp các sản phẩm Màn hình máy tính cao cấp, PC Gaming, CPU-Bộ vi xử lý, Laptop Gaming … chính hãng cùng với giá cả hợp lý, chất lượng hàng đầu tại Hà Nội và TP.HCM. Với phương châm luôn đặt sự hài lòng của khách hàng lên hàng đầu, chúng tôi mong muốn đem tới cho khách hàng những trải nghiệm mua sắm tuyệt vời nhất. Ngoài sản phẩm Mainboard Asus B760M-AYW WIFI D4 II DDR4 thì KCCSHOP còn có rất nhiều sản phẩm MAIN khác với chất lượng cao, giá thành tốt. Hãy liên hệ ngay với chúng tôi qua Hotline 0912.074.444 (HN), 0966.666.308 (HCM) hoặc truy cập https://kccshop.vn/ để được tư vấn và mua những sản phẩm ưng ý nhất.
0/5
0 đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạn| Model | B760M-AYW WIFI D4 II |
|---|---|
| CPU |
Intel
®
Socket LGA1700 for Intel
®
Core™ 14
th
& 13
th
Gen Processors, Intel
®
Core™ 12
th
Gen, Pentium
®
Gold and Celeron
®
Processors
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B760 Chipset |
| Memory |
2 x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics |
1 x HDMI
TM
port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots |
Intel
®
Core™ Processors (14
th
& 13
th
& 12
th
Gen)
1 x PCIe 5.0 x16 slot Intel ® B760 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6 (802.11 ax)
Supports 2.4/5GHz frequency band Bluetooth ® v5.3 The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB |
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

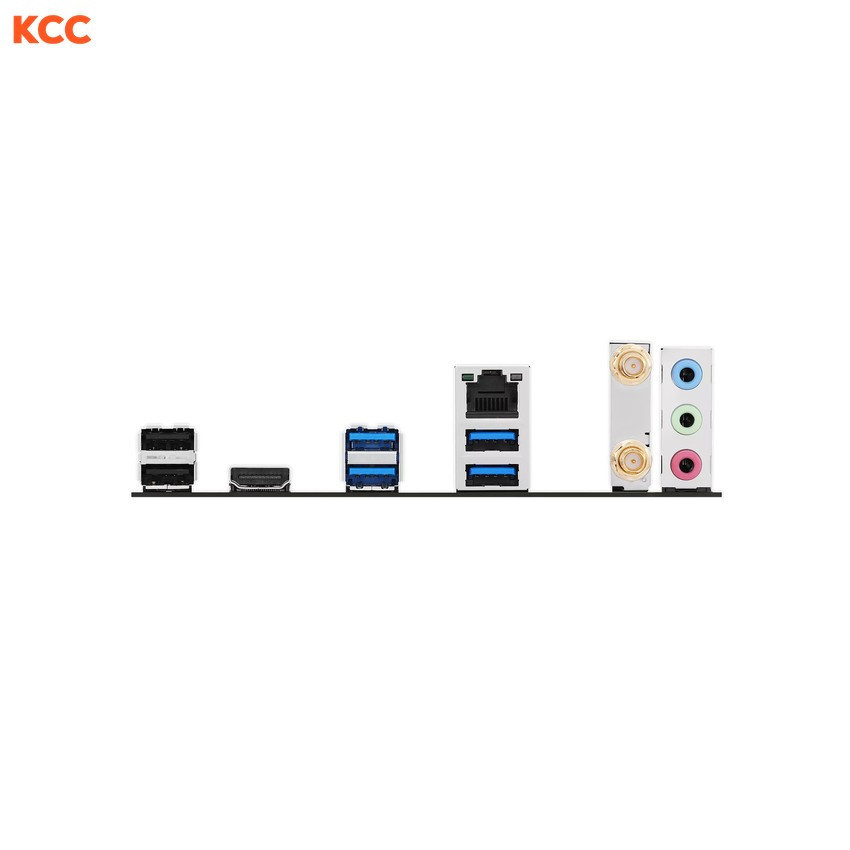

| Back Panel I/O Ports |
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) 1 x HDMI TM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors |
Fan and Cooling Related
1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header |
| Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable RGB Gen 2 headers |
| Software Features |
ASUS Exclusive Software
Armoury Crate - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation ASUS DriverHub -ASUS CPU-Z AI Suite 3 - DIGI+ VRM - PC Cleaner Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Operating System |
