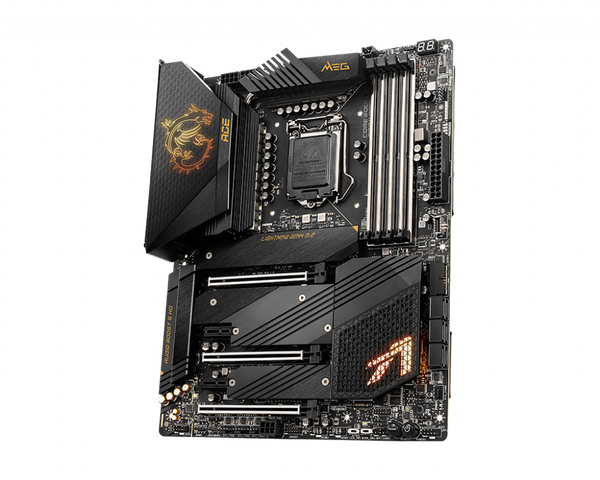

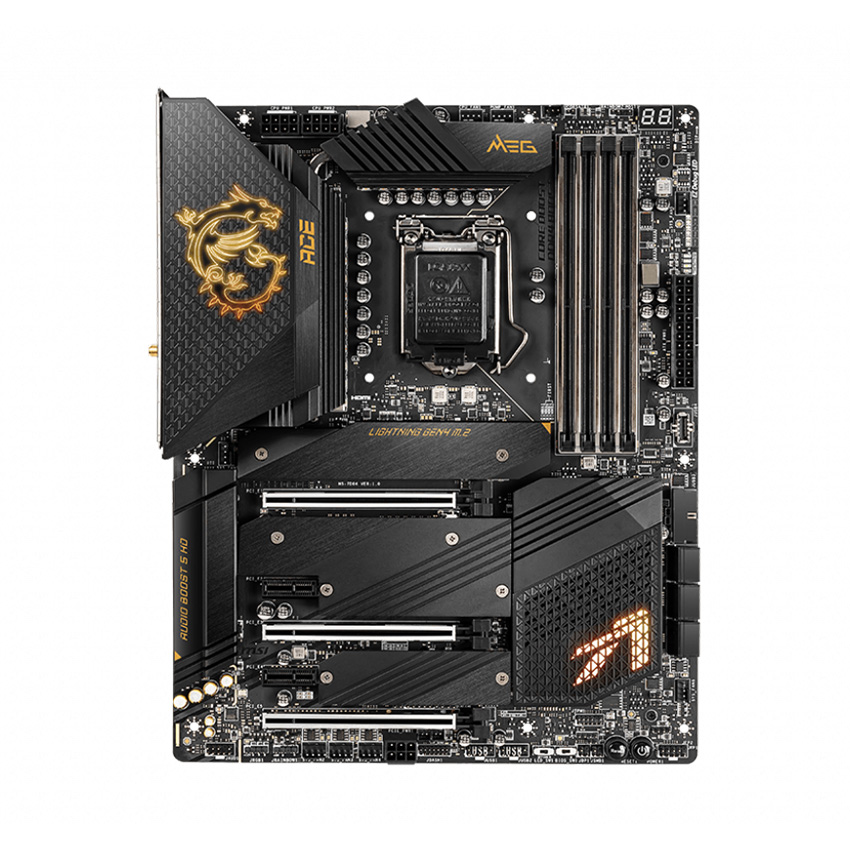

Mainboard MSI Z590 ACE (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

Tên Hãng

MSI

Model

Z590 ACE

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E5 slot (From Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 chipset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32, M2_4 slots (from Z590 chipset)
M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43
M2_2 & M2_3 support up to SATA 6Gb/s
M2_4 slot supports PCIe only.
Supports 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector

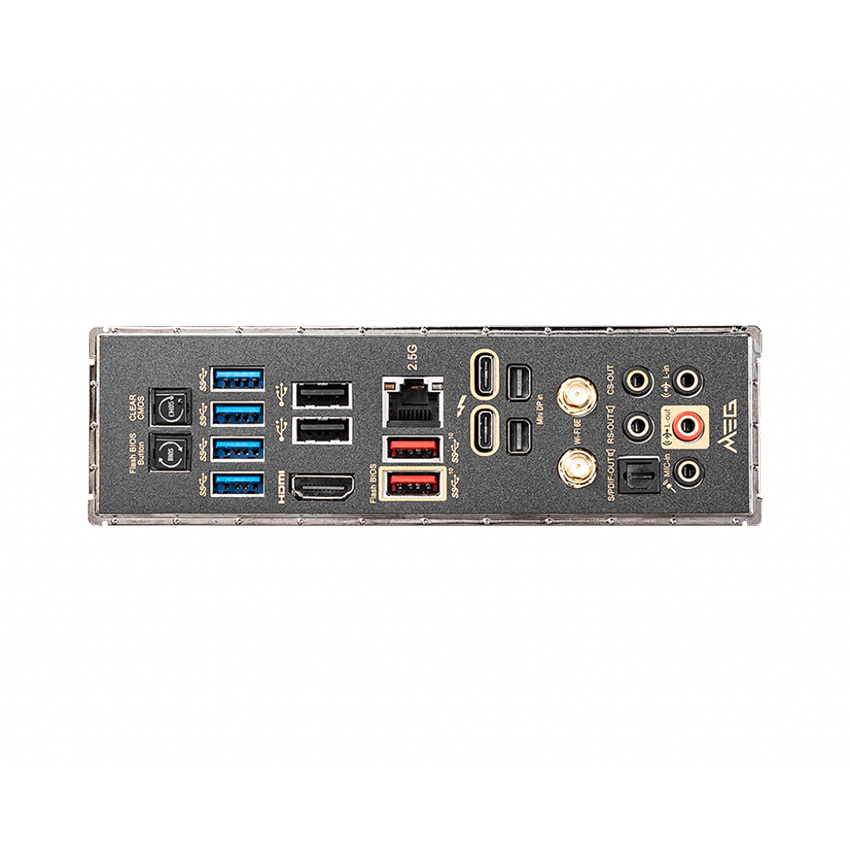

Cổng kết nối (Back Panel)

1 x HDMI
1 x 2.5G LAN port
1 x mini DP input
1 x Audio connector
2 x USB 2.0
1 x DP
4 x USB 3.2 Gen 1 5Gbps Type A
2 x USB 3.2 Gen 2 10Gbps Type A
2 x thunderbolt 4 40Gbps Type c
1 x Optical S/PDIF OUT
1 x wifi/bluetooth

LAN / Wireless

1x Intel® I225V 2.5Gbps LAN controller

Kích cỡ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
