Chipset: AMD A620A.
CPU: Ryzen 9000/8000/7000 series, Socket AM5.
RAM: 2x DDR5, tối đa 128GB, 6800 MT/s (OC).
Đồ họa: HDMI 4K 60Hz, VGA 2048x1536 50Hz.
Khe cắm: 1x PCI-E x16, 1x PCI-E x1.
Lưu trữ: 1x M.2 PCIe 4.0 x4, 2x SATA 6G.
USB: 6x USB 2.0, 7x USB 5Gbps.
Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!
ƯU ĐÃI THÊM
0/5
0 đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạn| Chipset | AMD A620A |
|---|---|
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MT/s • 1DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports CUDIMM, Clock Driver bypass mode only CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Onboard Graphics |
1x HDMI™
Support HDMI TM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio |
Realtek
®
ALC897 Codec
7.1-Channel High Definition Audio |
| Storage |
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 2x SATA 6G M2_1 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| LAN | Realtek ® RTL8125 2.5G LAN |
| Internal IO |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE |
4x EZ Debug LED
1x EZ Memory Detection LED |

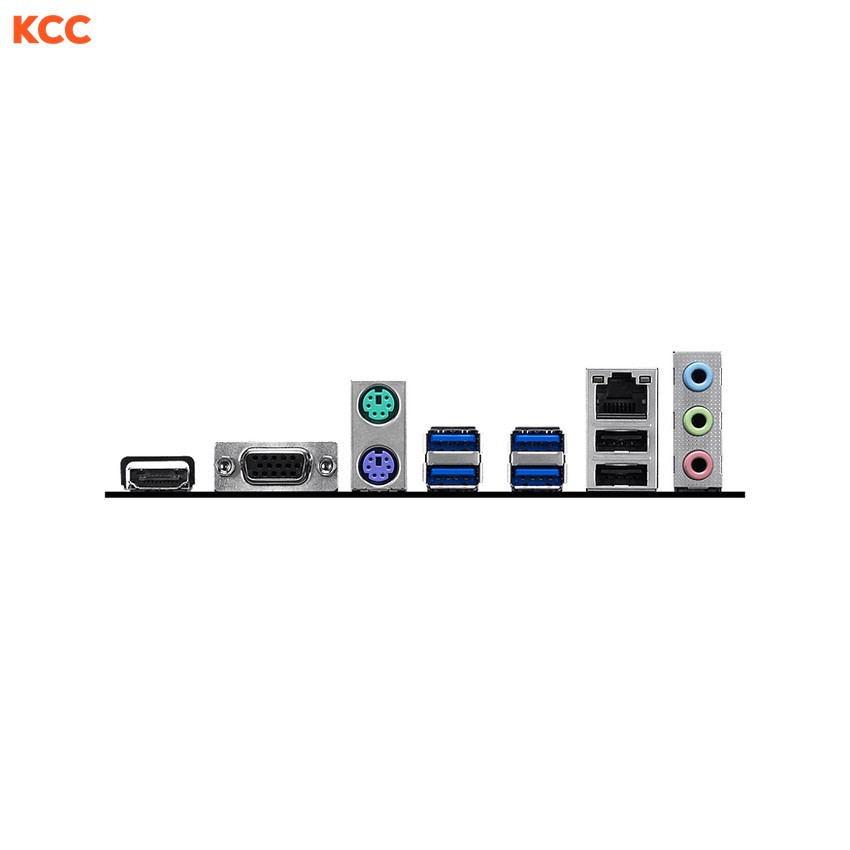

| BACK PANEL PORTS | HDMI™ VGA Keyboard/Mouse USB 5Gbps Type-A LAN port Audio connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows ® 11 64-bit, Windows ® 10 64-bit |
| PCB Info |
mATX
218mmx243.84mm |
